Conjugated Polymer Heteroatom Engineering Enables High Detectivity Symmetric Ambipolar Phototransistors
Davide Nodari, Sandeep Sharma, Weitao Jia, Adam Marsh, Yen‐Hung Lin, Yuang Fu, Xinhui Lu, Artem Russkikh, George T Harrison, Shadi Fatayer, Nicola Gasparini, Martin Heeney, Julianna Panidi
Advanced Materials
2024

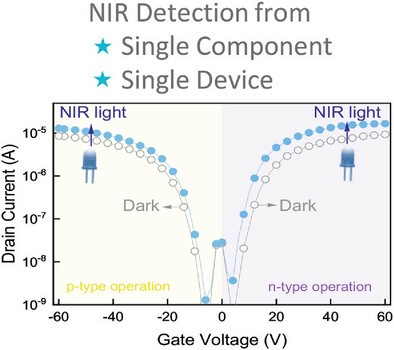

Solution-processed high-performing ambipolar organic phototransistors (OPTs) can enable low-cost integrated circuits. Here, a heteroatom engineering approach to modify the electron affinity of a low band gap diketopyrrolopyrole (DPP) co-polymer, resulting in well-balanced charge transport, a more preferential edge-on orientation and higher crystallinity, is demonstrated. Changing the comonomer heteroatom from sulfur (benzothiadiazole (BT)) to oxygen (benzooxadiazole (BO)) leads to an increased electron affinity and introduces higher ambipolarity. Organic thin film transistors fabricated from the novel PDPP-BO exhibit charge carrier mobility of 0.6 and 0.3 cm2 Vs⁻1 for electrons and holes, respectively. Due to the high sensitivity of the PDPP-based material and the balanced transport in PDPP-BO, its application as an NIR detector in an OPT architecture is presented. By maintaining a high on/off ratio (9 × 104), ambipolar OPTs are shown with photoresponsivity of 69 and 99 A W⁻1 and specific detectivity of 8 × 107 for the p-type operation and 4 × 109 Jones for the n-type regime. The high symmetric NIR-ambipolar OPTs are also evaluated as ambipolar photo-inverters, and show a 46% gain enhancement under illumination.
