Hybrid complementary circuits based on <i>p</i>-channel organic and <i>n</i>-channel metal oxide transistors with balanced carrier mobilities of up to 10 cm<SUP>2</SUP>/Vs

Isakov, Ivan; Paterson, Alexandra F.; Solomeshch, Olga; Tessler, Nir; Zhang, Qiang; Li, Jun; Zhang, Xixiang; Fei, Zhuping; Heeney, Martin; Anthopoulos, Thomas D.

APPLIED PHYSICS LETTERS

2016

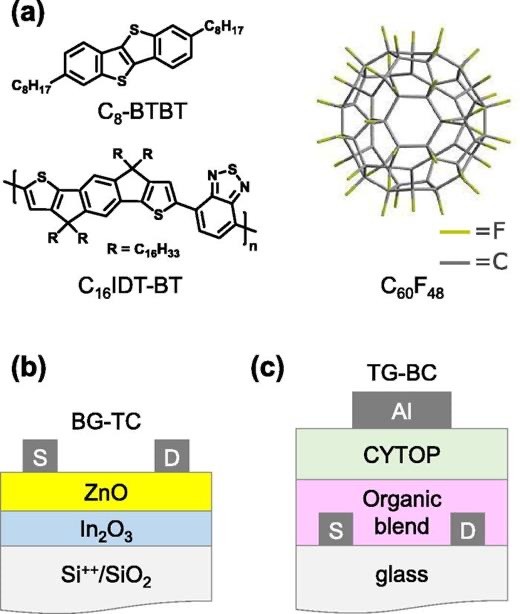

We report the development of hybrid complementary inverters based on p-channel organic and n-channel metal oxide thin-film transistors (TFTs) both processed from solution at <200 °C. For the organic TFTs, a ternary blend consisting of the small-molecule 2,7-dioctyl[1]benzothieno[3,2-b][1]benzothiophene, the polymer indacenodithiophene-benzothiadiazole (CIDT-BT) and the p-type dopant CF was employed, whereas the isotype InO/ZnO heterojunction was used for the n-channel TFTs. When integrated on the same substrate, p- and n-channel devices exhibited balanced carrier mobilities up to 10 cm/Vs. Hybrid complementary inverters based on these devices show high signal gain (>30 V/V) and wide noise margins (70%). The moderate processing temperatures employed and the achieved level of device performance highlight the tremendous potential of the technology for application in the emerging sector of large-area microelectronics.
